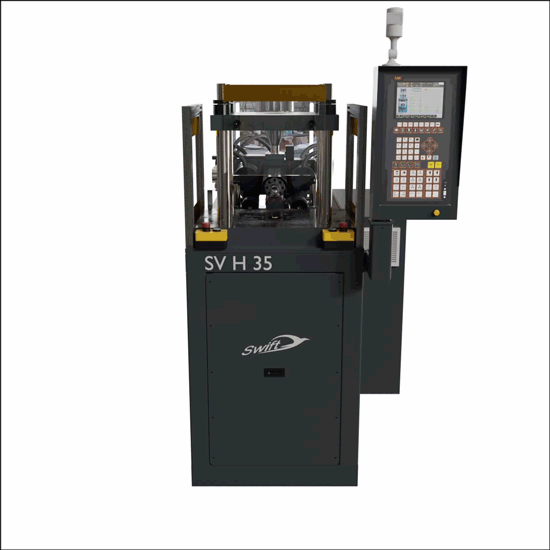

VERTICAL CLAMPING HORIZONTAL INJECTION TYPE MOLDING MACHINE

SV H_edited.png

SV - H

Double Slider Vertical Injection Molding Machines are equipped with a two station sliding table that moves the bottom half of the mould containing the Finished part out of the clamping area.

Machine works with One and half mold, Molding continues at one end while the operator removes and loads inserts at other end.

Designed for increased operator safety and easier placement of Inserts and removal of the finished product from the mould while increasing production capacity.

SVH highlights

INSERT MOLDING

With the vertical design of the machine, it gets really easy to insert mold components as the components stay locked in their place and you get perfect insert molded components.

When it comes to inset molding Vertical Injection Molding Machines are the ideal choice for many solutions, When it comes to overmolding inserts, precision is a premium. With its compact, design and vertical clamping unit, User-Friendly Controller and setup procedure Fixed Type Vertical Injection Molding machines can provide the best results for small volume production requirements, with the best molding results.

The sliding table is designed to make it easier for the operator to load complex/heavy inserts onto mold easily and remove complex/heavy components from mold easily while increasing safety.

Due to mold moving out of clamping area it gets much easier to use a robot for automated placement of inserts and removal of finished products.

  • Minimal footprint - With the Vertical Injection unit and Clamping Unit, Machine size becomes much smaller.

  • Sliding Table - Sliding table moves out of the clamping area facilitating easier placement of inserts and removal of finished products while increasing operator safety.

  • Ergonomic Design - Designed with operator comfort in mind, the flat working area and open clamping area without any interruptions results in maximising operator production output.

  • Maximum Safety - Machines as standard are equipped with multiple safety features to reduce operator accidents.

  • Maximum protection - Equipped with unique controller features and physical safety designs result in better mold protection and machine protection.

  • Excellent Energy-Efficiency - Efficient Mechanical Designing, Lower Friction coefficient, high-grade manufacturing materials and Highly efficient machine Drive provide high efficiency.

  • Powerful Controller - High Power Controller and optimised algorithms result in better machine control and easier setup of the machine.

HIGHLIGHTS
Rotary table

The rotary table use one and a half mould rotating the mould in and out of the clamping area to reduce the machine's idle time, as loading and unloading of components can be done at the same time while machine continues moulding inside the clamping area.

Ram type Clamping

The clamping unit is equipped with a ram-type hydraulic cylinder, which provides fast and stable clamping pressure, while also being totally maintenance-free. It also provides higher control over the clamping unit positioning for better clamping force control and moulds safety control.

GREENDRIVE

An optional greendrive hydraulic system is also available, which provides higher machine efficiency, silent machine operation, better accuracy, reduces machine operational temperature, and increases machine's service life.

Advanced Controller

Equipped with LNC controllers which are easy to operate while providing many advanced features as standard, such as high detail production tracking, machine operational statistics, remote monitoring and control, user profiles, Automation integration, Industry 4.0 devices integration, and much more.

Compact Design

With the vertical design of the machine, the work floor space requirement of the machine is greatly reduced, such that multiple machines can be installed in the same place required for a conventional horizontal machine.

High Safety

Equipped with multiple safety devices for operator and machine safety as standard, to prevent accidents from happening, high strength on both sides makes sure that no one can enter the clamping area while the machine is operational, other safety devices include, Light curtains, safety doors, advanced mould protection, and much more.

Compact Design

With the vertical design of the machine, the work floor space requirement of the machine is greatly reduced, such that multiple machines can be installed in the same place required for a conventional horizontal machine.

MADE IN INDIA

Designed, engineered and manufactured in India, which translates to better machine quality and higher trust, for customers, it is beneficial due to our big service network, better support, and stronger availability.

Compact Design

With the vertical design of the machine, the work floor space requirement of the machine is greatly reduced, such that multiple machines can be installed in the same place required for a conventional horizontal machine.
